aluminum tank semi-trailer

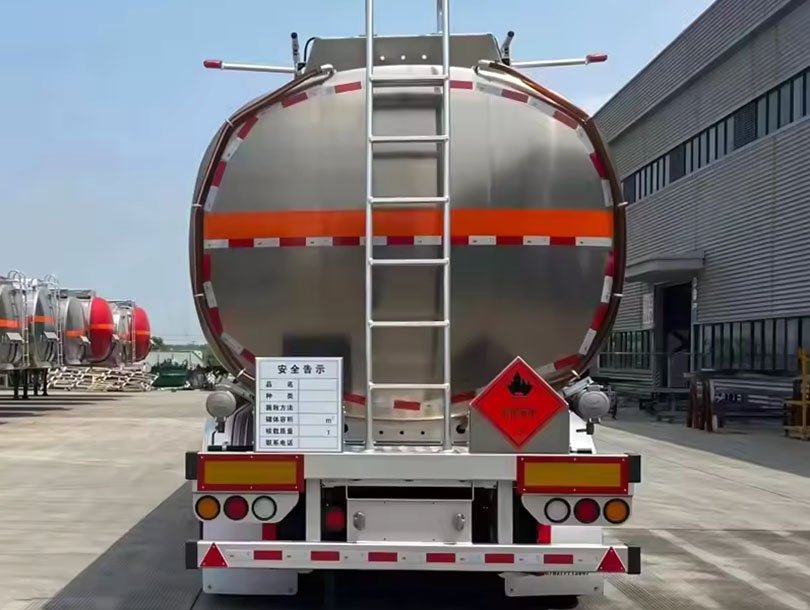

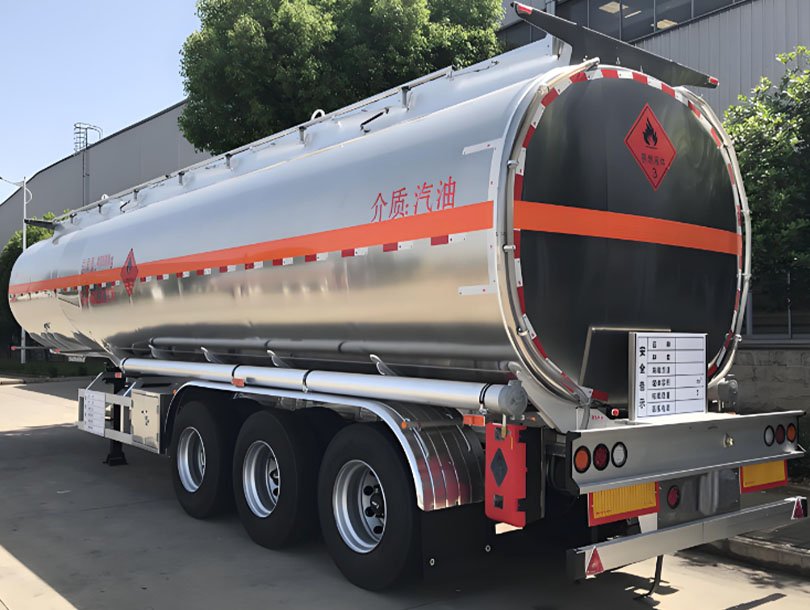

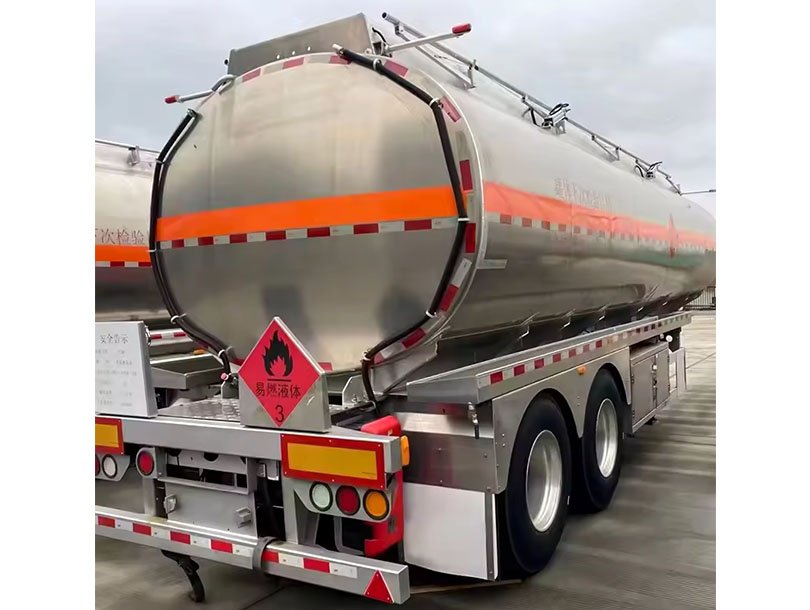

Polished aluminum tank semi-trailer trucks are widelyused in industries such as chemical, food, beverages, andpharmaceuticals, making them an ideal choice for thetransportation of liquid goods
Industry attributes
| Lead Time | 10-30days |
| Supply Capacity | 100 pieces/month |
| Place of Origin | Shandong,China |
Inquire now
- Product Details
- Online Message
- Related products
product details
30000-70000 Liters 3 Axles Stainless Steel Tanker Semi Trailer
1.Compared with the common single oil tank truck, the semi-trailer fuel tank can effectively improve the transportation efficiency. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved.
2.There are multiple anti-wave baffles in the tank. High-pressure gas leak detection is adopted, so that the tank has the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc.
3.Centrifugal pumps, gear pumps and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow rate and fast suction speed.
4.Single-counting and double-counting flow meters can be selected for the measurement of oil tankers, and a tax-controlled computer fuel dispenser can also be installed, and a 10-15m automatic retractable return reel can be installed, equipped with a refueling gun. Edible oil products can be measured with a computerized edible oil product meter.

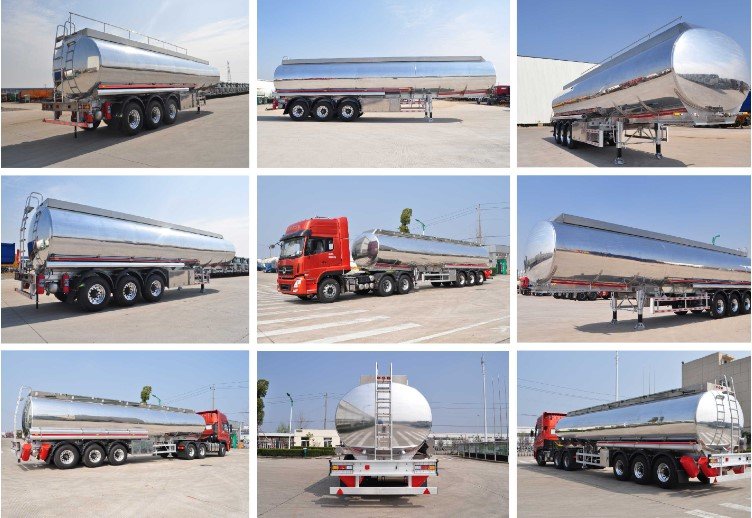

30000-70000 Liters 3 Axles Stainless Steel Tanker Semi Trailer Design
30000-70000 Liters 3 Axles Stainless Steel Tanker Semi Trailer specification
| WOSHENG Fuel Tanker Truck Trailer | |
| Material | Stainless Steel 304/316 |
| Application | Fuel/Liquid Loading |
| Volume of Tank | 20-70 CBM Customized |
| Axle | 2/3/4 Axles |
| Compartment | 1 to 9 |
| Length*Width*Height | 13000mm*2500mm*3800mm(customized) |
| European System | Available |
| Thermal | Available |
| Manhole | Anti-Explosion |
| Lifted Axle | Available |
| Vehicle Examination | X-RAY Room Examination |
| OEM/ODM | Available |
| SKD/CKD Cooperation | Available |
| Tank Shape | D Style/Round Style |
| Item | Spec. |
| Tank Thickness | 5mm |
| Dish End Thickness | 6mm |
| Buffle Thickness | 4mm |
| The spare parts below are based on the quantity of compartments.For ExampleOne Compartment. | |
| Manhole | X-RAY Room Examination |
| Discharge Valve | 2*3 inch |
| Bottom Valve | 4 inch Aluminum |
| Discharge Pipe | 3 inch rubber hose,6m/each |
| Hose Carrier | 2 Pieces Carbon Steel/Aluminum |
| Axles | 2/3/4 Axles *13/16 Ton FUWA/BPW/Other |
| Tire | 12R22.5/11.00r20 (8/12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other |
| Rim | 9.00*22.5/8.0 (8/12/16 Pieces) Steel/Aluminum |
| Leaf Spring | 90mm*13mm*10/90mm*16mm*10 |
| Suspension System | Mechanical or Air Suspension |
| Kin Pin | 50#(2")/90#(3.5") JOST/Other Brand,Changeable |
| Landing Gear | 28 Tons Two Speed,/JOST/Other Brand |
| Tool Box | Steel or Aluminum |
| Extinguisher | 2 Sets |
