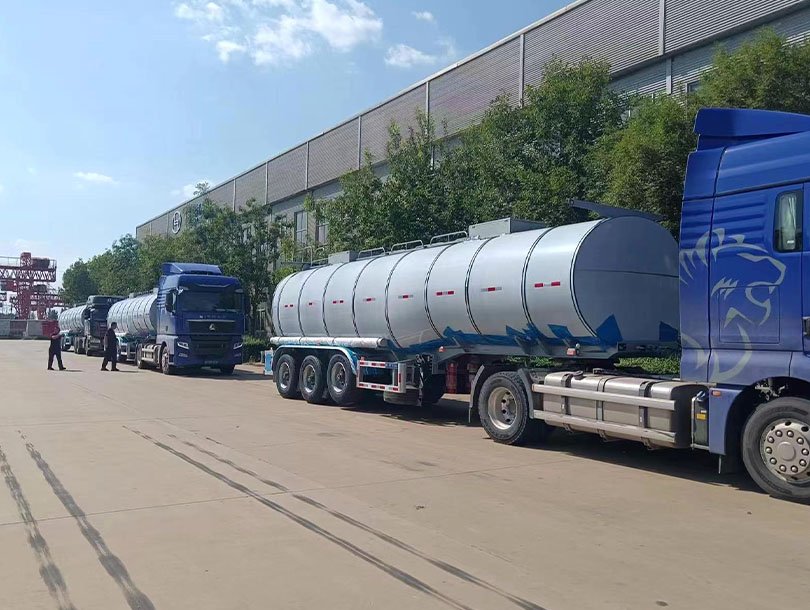

2 / 3 / 4 Axles Carbon Steel Tanker Semi Trailer
WOSHENG fuel tank semi-trailers are mainly used to transport oil and liquids, such as fuel, gasoline, diesel, crude oil, asphalt, palm oil, JET A-1, water, liquid chemicals, food oil, etc. We can design with different capacity: 30 cubic, 40 cubic, 50 cubic and so on. It can carry 40,000 liters, 45,000 liters, 54,000 liters, and up to 90,000 liters of liquid. Also, the material can be different: carbon steel, stainless steel, aluminum alloy. We can customize different volumes and compartments.
2 / 3 / 4 Axles Carbon Steel Tanker Semi Trailer image
2 / 3 / 4 Axles Carbon Steel Tanker Semi Trailer specification
| Name | 2 / 3 / 4 Axles Carbon Steel Tanker Semi Trailer |
| Trailer Model | Round Shape or Ellipse |
| Outside Dimensions | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm (customized) |
| Tare weight | About 8-12.8T |
| Total Volume | 25m³-60m³ |
| Material | Q235B/Q345B carbon steel |
| Tanker Body Material | 6mm/5mm Q235B/Q345B carbon steel |
| Axles | 13T/16T, FUWA/BPW/HuaJing brand |
| Axle Number | 3/ Axle or multi axle |
| Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm,middle plate thickness is 8mm-12mm,down plate thickness is 16mm-25mm;Material is Q345 manganese steel . |
| Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
| King Pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Support legs | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |
| Rear ladder | Dismountable or foldaway |
| Wheelbase | 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm |
| Spring leaf | 12 pieces |
| Manhole Cover | 6 piece Carbon steel API manhole cover ,500mm European standards |
| Brake Chamber | 6 double brake chamber |
| Electrical System | 24V, 7core socket, lights according to European standards |
| Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher |
| Other tools | A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) |
| Discharge mouth | diameter is 280mm |
| Receptacle | 7ways (7wire harness) |
