Fence semi Truck Trailer
Fence semi Truck Trailer are Q345B high-strength structural steel, boastingexceptional tensile strength and aformidable load-bearing capacityof up to 60-100 tons.
Industry attributes
| Lead Time | 15-30days |
| Supply Capacity | 100 pieces/month |
| Place of Origin | China |
Inquire now
- Product Details
- Online Message
- Related products
product details
3/4 Axle 50-100Ton High Fence Livestock Cargo Vegetable Transport semi Truck Trailer
Fence semi trailer generally less expensive compared to other specialized trailers, making them a cost-effective option for businesses that require flexibility in cargo transportation.

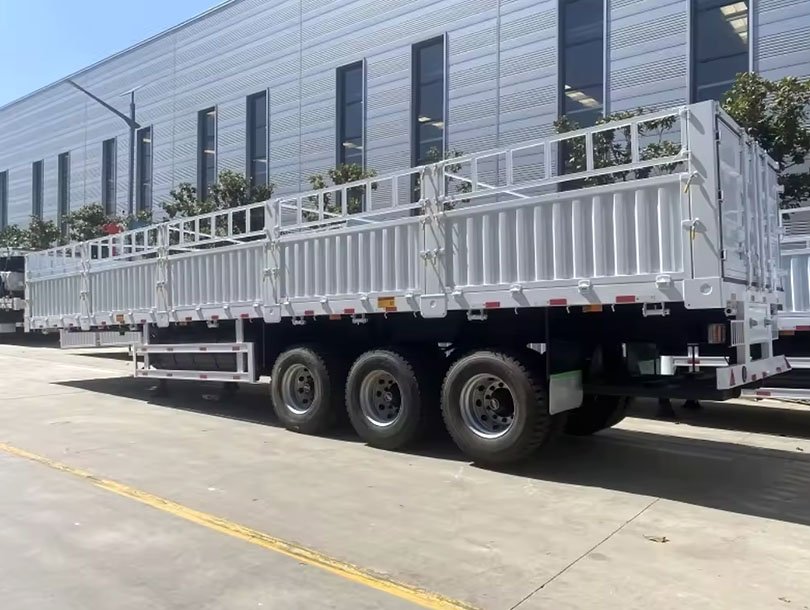

3/4 Axle 50-100Ton High Fence Livestock Cargo Vegetable Transport semi Truck Trailer image

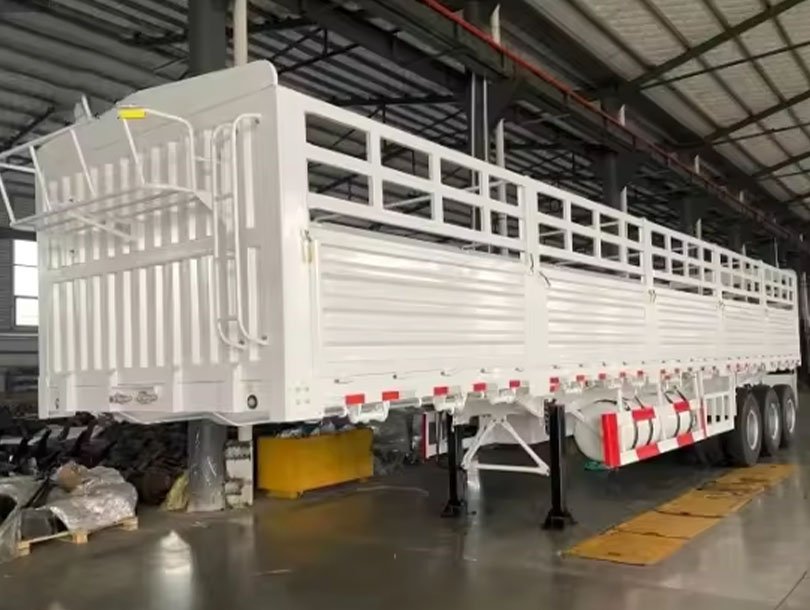

3/4 Axle 50-100Ton High Fence Livestock Cargo Vegetable Transport semi Truck Trailer image

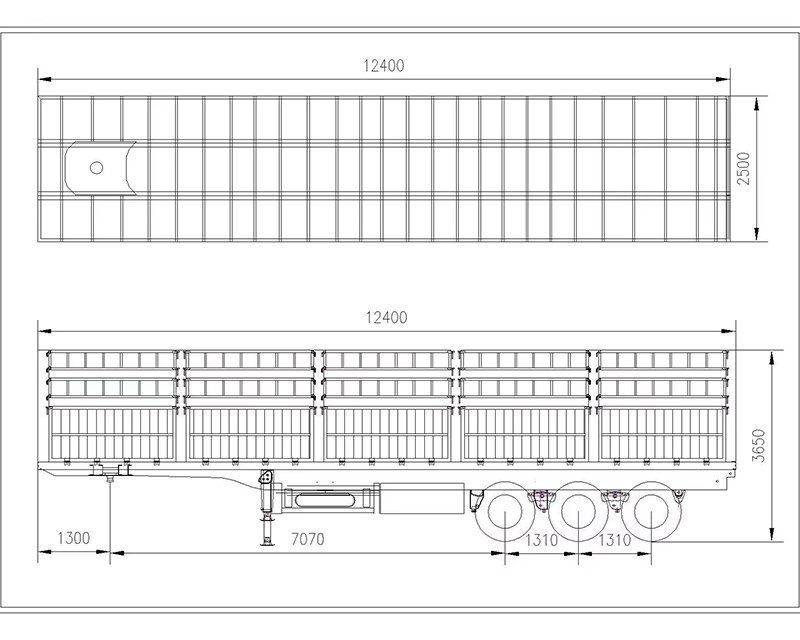

3/4 Axle 50-100Ton High Fence Livestock Cargo Vegetable Transport semi Truck Trailer specification
| Products Name | Wosheng 3 Axle Fence Steel Stake Semi Trailer |
| Max Payload | 50-100ton |
| Size | 12400X2500X3650mm (customized) |
| Tare weight | 6500kg (Depends on final configuration) |
| Color | According to customer's requirment |
| Axle | 3/4axles 13/16ton FUWA |
| Suspension | Air/Mechanical Suspension |
| Wheel | 6780X1310X1310 |
| King Pin | 2"(50mm)or3.5"(90mm) |
| Landing gear | SAF two speed 28t Heavy Duty Landing Gear |
| leaf spring | 90(w)mm*13(thickness)mm*10(layer) |
| platform plate | 3mm |
| logo | According to customer's requirment |
| Application | Coal/ Livestock/Vegetable/Cargo Loading |
| Main beam | Height: 500mm |
| upper plate is 14mm | |
| middle plate is 8mm | |
| down plate is 16mm | |
| Q345B Steel | |
| side wall height | 600-1700mm(can be customized) |
| side beam | 16mm channel steel(material is Q235B steel) |
| tire | 12.00R22.5 Trangle or other brand |
| Rim | 9.0-22.5 |
| Kin pin | 2"(50mm)or3.5"(90mm) |
| Landing gear | SAF two speed 28t Heavy Duty Landing Gear |
| Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; three units of 40L air tanks |
