3 axle wingspan van semi trailer
3 axle wingspan van semi trailer wing-shaped side door is made of 100% aluminum and is the lightestwing-shaped van on the market. The double-acting side door is raised andlowered in place by the hydraulic system of the safety control box.
Industry attributes
| Lead Time | 10-30days |
| Supply Capacity | 100 pieces/month |
| Place of Origin | China |
Inquire now
- Product Details
- Online Message
- Related products
product details
Factory sale 3 axle 30/40ton logistics wingspan van semi trailer
Wosheng wingspan van semi trailer is suitable for transporting fruits and vegetables, electricity, building materials and other bulk cargo.The wingspan van trailer is a double-winged hydraulic open-lift carriage on the left and right sides, with movable railings optional at the lower end of the body.

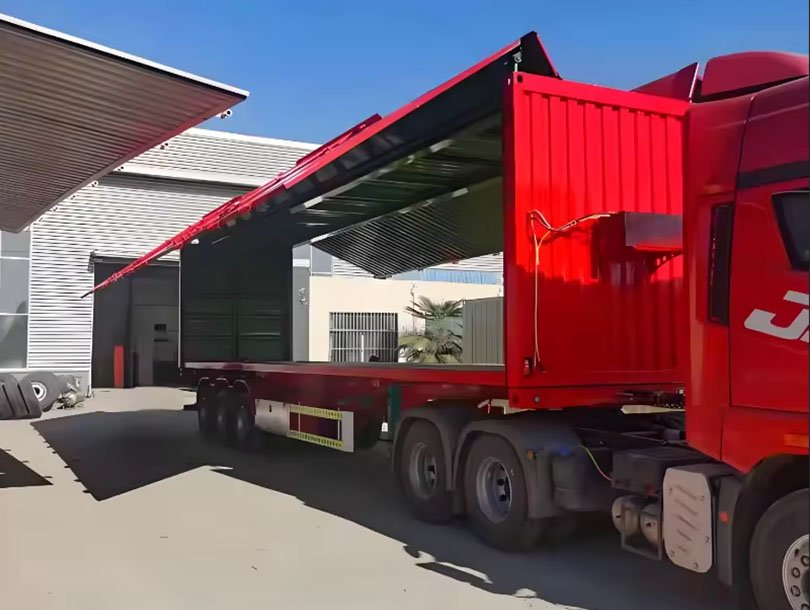

Factory sale 3 axle 30/40ton logistics wingspan van semi trailer image

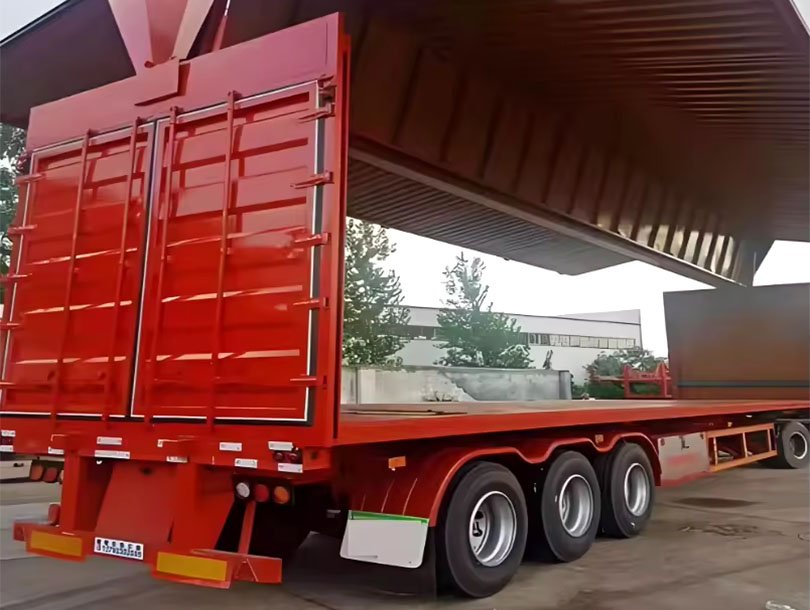

Factory sale 3 axle 30/40ton logistics wingspan van semi trailer image

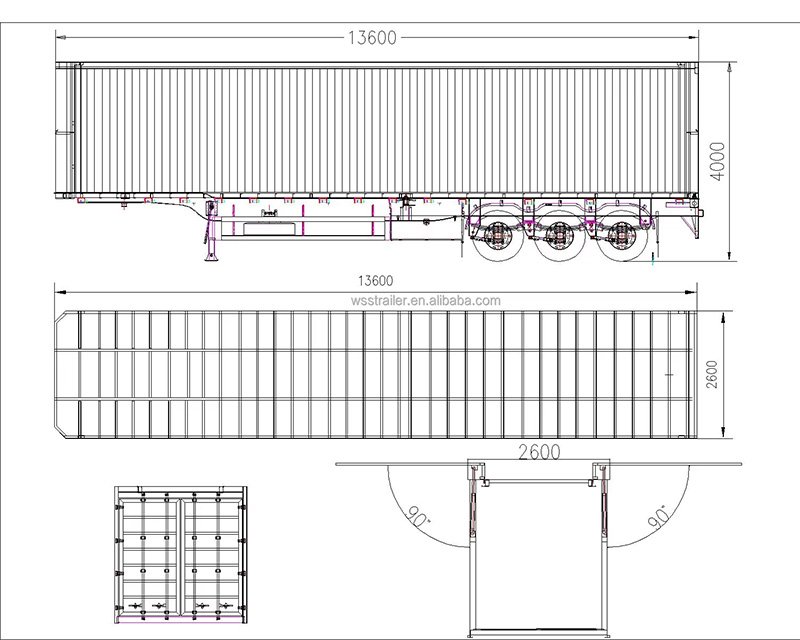

Factory sale 3 axle 30/40ton logistics wingspan van semi trailer specification
| Product Name | Wingspan Van Semi Trailer |
| Dimension(Lx W x H)（mm） | 13600x2600x4000mm (customizable) |
| Inside dimension | 13280x2440x2547mm ( customizable) |
| Tare weight (kg) | 8500 (depends on final configuration) |
| Max Loading Capacity (kg) | 35000 （customizable) |
| Main Beam | Q345B / T700 Steel Height 500mm |
| upper plate is 14mm, | |
| down plate is 16mm, | |
| middle plate is 8mm. (customizable) | |
| Bottom Plate Thickness (mm) | 3mm (customizable) |
| Door Open Manner | Double or single back door, and the top can be expanded |
| Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
| Rim | 9.00-22.5/8.00-20/8.50-20 |
| King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional |
| Suspension | Mechanical Suspension Air Suspension(American or Geman) |
| Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
| Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
| Brake System | Dual line brake system, Air chamber T30/30, |
| 3 X 40L gas storage drums |
